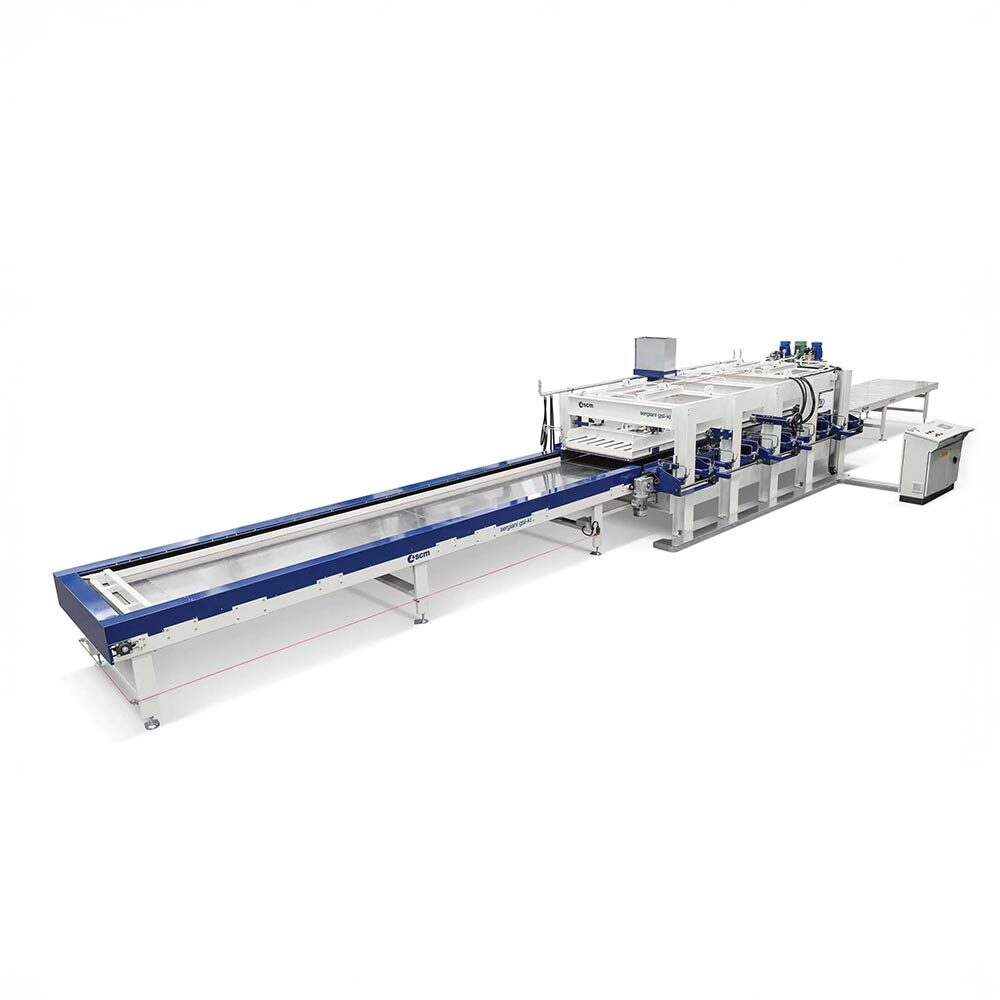

SCM Sergiani GSL-KL

Description

The SCM Sergiani GSL-KL is a specialized cold press designed for the production of structural panels used in roofs, cantilever roofs, bridges, and other structural elements. It can be configured with different panel compositions and automatic loading/unloading systems to meet specific manufacturer requirements, with three versions available for panel thicknesses of 40, 80, and 150mm. The press delivers top productivity through automatic large-panel production and optimized cycles, ensures optimum gluing quality with a side-thrust unit sized to panel thickness, and guarantees perfect flatness via vertical press-platen thrust. Customizable automatic solutions are also available to match the selected gluing system and production workflow.

Model	GSL-KL 25-23	GSL-KL 30-13 GSL-KL 35-13 GSL-KL 45-13 GSL-KL 53-13 40 mm max suggested wortking thickness:
Platens dimension	mm	2500x1300 3000x1300 3500x1300 4500x1300 5300x1300
Vertical thrust	ton	50 60 70 90 110
Lateral thrust	ton	7,5 9 10,5 13,5 200
Cylinders stroke	mm	200 200 200 200 200 80 mm max suggested wortking thickness:
Platens dimension	mm	2500x1300 3000x1300 3500x1300 4500x1300 5300x1300
Vertical thrust	ton	50 60 70 90 110
Lateral thrust	ton	20 24 28 36 40
Cylinders stroke	mm	200 200 200 200 200 150 mm max suggested wortking thickness:
Platens dimension	mm	2500x1300 3000x1300 3500x1300 4500x1300 5300x1300
Vertical thrust	ton	50 60 70 90 110
Lateral thrust	ton	38 46 54 69 77
Cylinders stroke	mm	200 200 200 200 200
