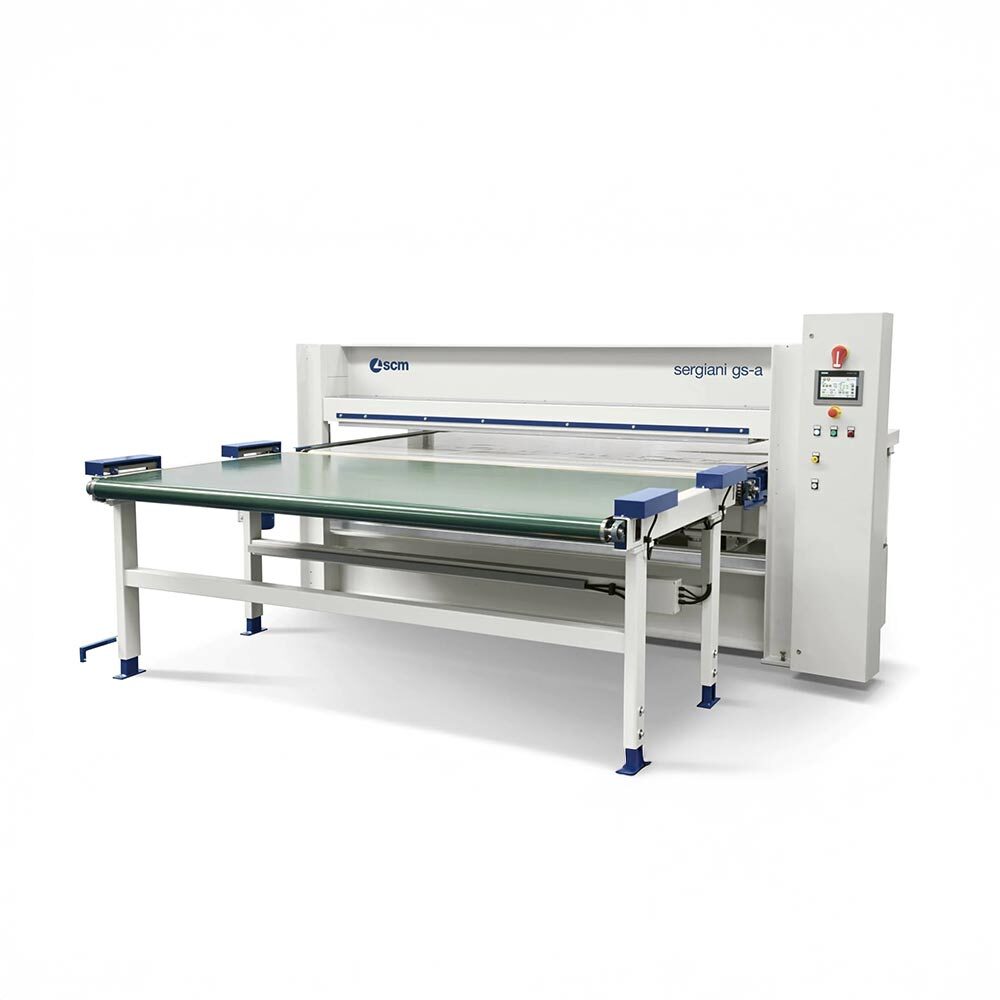

SCM Sergiani GS-A

Description

The SCM Sergiani GS‑A is a high-performance hot press designed to deliver exceptional surface finish and gluing quality, thanks to precise mechanical machining and specialized construction solutions. Its reliable loading system uses a continuously moving Mylar belt for consistent handling, while all machine functions are electronically controlled via a Siemens touchscreen panel. Offering high versatility, the GS‑A supports cross-panel loading and can be integrated into configurable production lines to meet diverse customer requirements.

Platens dimension (mm)	Thrust (Ton)
gs-a 6 / 90	2500 x 1300	90
gs-a 6 / 120	2500 x 1300	120
gs-a 6 / 120	2500 x 1600	120
gs-a 6 / 90	3000 x 1300	90
gs-a 6 / 120	3000 x 1300	120
gs-a 6 / 120	3100 x 1300	120
gs-a 6 / 120	3000 x 1400	120
gs-a 6 / 120	3100 x 1600	120
gs-a 6 / 90	3500 x 1300	90
gs-a 6 / 120	3500 x 1300	120
gs-a 8 / 160	3000 x 1300	160
gs-a 8 / 160	3100 x 1300	160
gs-a 8 / 160	3100 x 1600	160
gs-a 8 / 110	3500 x 1300	110
gs-a 8 / 160	3500 x 1300	160
gs-a 8 / 160	3800 x 1600	160
gs-a 10/ 200	3500 x 1300	200
gs-a 10/ 200	3800 x 1600	200
