SCM Connexus FF

SCM Connexus FF

Compact design meets superior performance for versatile joinery tasks.

SKU: SCM-CONFF Category: Brand:

Description

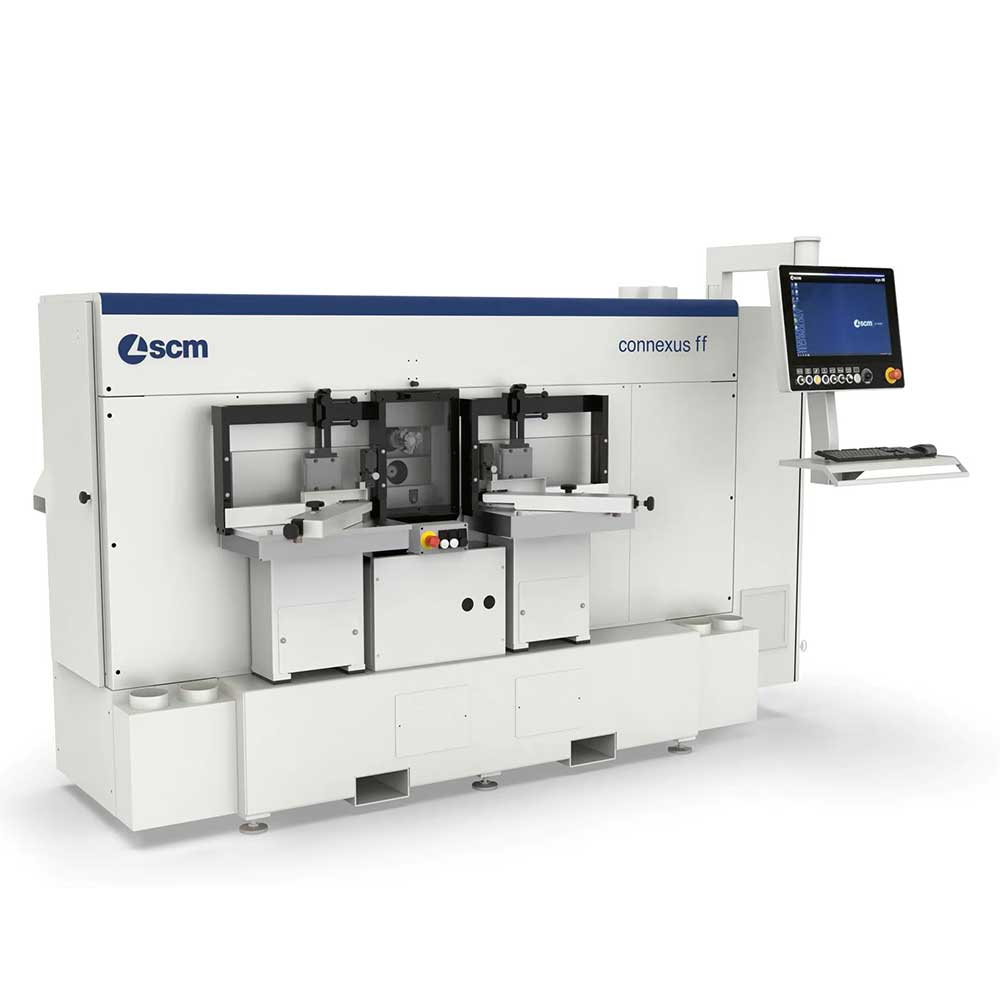

The SCM Connexus FF is a versatile CNC tenoning-mortising machine that combines head and longitudinal operations in a single unit, expanding production capabilities while reducing the machine footprint.
Its front benches allow pendulum-mode machining without interruption, delivering superior performance and continuous workflow. Operation is simple and intuitive thanks to the 21.5″ touch-screen console “eye-M” and the Maestro Active Joint interface, ensuring easy navigation and efficient use.

Axes movement
X-axis stroke mm 1100
Y-axis stroke mm 280
X-Y axes speed m/min 30
Front benches
Dimensions mm 520 x 320
Rotation of the work-piece support fence degrees 0 / 45
Rear worktable
Dimensions mm 1400 x 150
Dimensions of three locking pressures mm 100 x 50
Tenoning unit
Electrospindle max. power kW 4,5
Rotation speed rpm 9000 / 12000
Chuck connection for 3 ÷ 25 mm collets type ER40
Drilling/mortising unit
Electrospindle max. power kW 2
Rotation speed rpm 5000 / 9000 / 12000 / 18000
Chuck connection for 3 ÷ 16 mm collets type ER25
